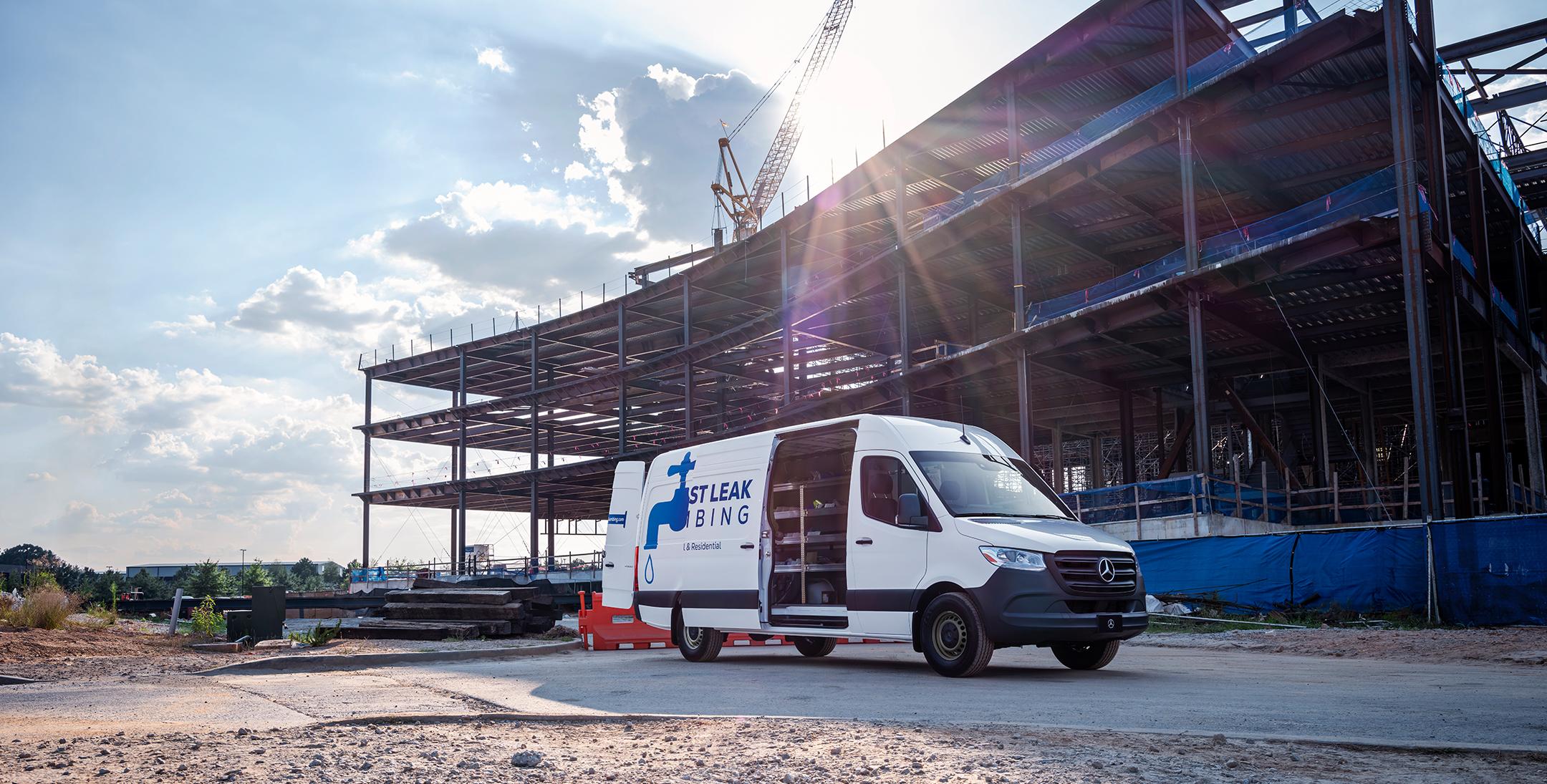

Sprinter Cargo Van
Starting at
$50,830
*
Color
Arctic WhiteCargo Van Lineup
2025
Cargo Van 2500
Dimensions
- Overall Height:
- 100 in
- Overall Length:
- 234 in
- Overall Width with mirrors:
- 92 in
- Wheelbase:
- 144 in
Key Features
- Engine:
- 4-Cylinder Diesel Standard Output
- Payload Capacity:
- 4,211 lbs
- Max Towing:
- 5,000 lbs [1]
- Cargo Volume:
- 319.0 cu. ft
- Standing Height:
- 68 in
- Seating Capacity:
- 2-3
Capacity
- Payload Capacity:
- 4,211 lbs
- Seating Capacity:
- 2-3
- Cargo Volume:
- 319.0 cu. ft
- Max Available GVWR:
- 9,050 lbs
- Base Curb Weight:
- 4,839 lbs
- Max Available GCWR:
- 13,930 lbs
- Max Towing:
- 5,000 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- UVW, lbs.:
- 7401 lbs
- Max. Tongue Weight, lbs.:
- 500 lbs
- GAWR.F (Standard), lbs.:
- 4,101 lbs
- GAWR.F (Option), lbs.:
- 4,409 lbs
- GAWR.R, lbs.:
- 5,359 lbs
- Base Curb Weight (Front), lbs.:
- 1,944 lbs
- Base Curb Weight (Rear), lbs.:
- 2,917 lbs
Measurements
- Standing Height:
- 68 in
- Cargo Bed Length:
- 133 in
- Turning Diameter (curb to curb):
- 45 ft
- Ground To First Step-Side:
- 21 in
- Load height, unloaded (ground to cargo floor):
- 28 in
- Door Opening-Side(Height):
- 60 in
- Door Opening-Rear(Height):
- 61 in
- Dual Door Width-Side:
- 51 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 133 in
- Cargo Width at Wheelhouse:
- 53 in
- Max Width at Floor:
- 70 in
- Loading Area:
- 54 sqft
- Turning Circle (Wall to Wall):
- 44 ft
- Available Rear Axle Ratios****:
- 59%/ 41%
- Overhang (Front), in:
- 40 in
- Overhang (Rear), in:
- 49 in
- Tire Track (Front), in:
- 67.2 in
- Tire Track (Rear), in:
- 68.2 in
- Rim:
- ET54
- Center of Gravity X, in:
- TBD
- Center of Gravity Z, in:
- TBD
- Max. Height Center of Gravity Z , in:
- TBD
- Center of Gravity Y, in:
- TBD
- Tires & Load Ratings:
- 3086
- Interior Height:
- 68 in
Powertrain
- Engine:
- 4-Cylinder Diesel Standard Output
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 170 hp at 3800 rpm
- Rated Torque:
- 295 lb-ft at 1,400 -2,400 rpm
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Dimensions
- Overall Height:
- 100 in
- Overall Length:
- 234 in
- Overall Width with mirrors:
- 92 in
- Wheelbase:
- 144 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output
- Payload Capacity:
- 4,211 lbs
- Max Towing:
- 5,000 lbs [1]
- Cargo Volume:
- 319.0 cu. ft
- Standing Height:
- 68 in
- Seating Capacity:
- 2-3
Capacity
- Payload Capacity:
- 4,211 lbs
- Seating Capacity:
- 2-3
- Cargo Volume:
- 319.0 cu. ft
- Max Available GVWR:
- 9,050 lbs
- Base Curb Weight:
- 4,839 lbs
- Max Available GCWR:
- 13,930 lbs
- Max Towing:
- 5,000 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- Base Curb Weight (Rear), lbs.:
- 2,950 lbs
- UVW, lbs.:
- 7401 lbs
- Base Curb Weight (Front), lbs.:
- 1,967 lbs
- GAWR.R, lbs.:
- 5,359 lbs
- Max. Tongue Weight, lbs.:
- 500 lbs
- GAWR.F (Standard), lbs.:
- 4,101 lbs
- GAWR.F (Option), lbs.:
- 4,409 lbs
Measurements
- Standing Height:
- 68 in
- Cargo Bed Length:
- 133 in
- Turning Diameter (curb to curb):
- 45 ft
- Ground To First Step-Side:
- 21 in
- Load height, unloaded (ground to cargo floor):
- 28 in
- Door Opening-Side(Height):
- 60 in
- Door Opening-Rear(Height):
- 61 in
- Dual Door Width-Side:
- 51 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 133 in
- Cargo Width at Wheelhouse:
- 53 in
- Max Width at Floor:
- 70 in
- Interior Height:
- 68 in
- Tires & Load Ratings:
- 3086
- Center of Gravity Z, in:
- TBD
- Max. Height Center of Gravity Z , in:
- TBD
- Center of Gravity Y, in:
- TBD
- Center of Gravity X, in:
- TBD
- Rim:
- ET54
- Tire Track (Rear), in:
- 68.2 in
- Overhang (Front), in:
- 40 in
- Overhang (Rear), in:
- 49 in
- Tire Track (Front), in:
- 67.2 in
- Available Rear Axle Ratios****:
- 59%/ 41%
- Turning Circle (Wall to Wall):
- 44 ft
- Loading Area:
- 54 sqft
Powertrain
- Engine:
- 4-Cylinder Diesel High Output
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp at 3,800 rpm
- Rated Torque:
- 332 lb-ft at 1,400-2,400 rpm
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Cargo Van 2500
Dimensions
- Overall Height:
- 100 in
- Overall Length:
- 234 in
- Overall Width with mirrors:
- 92 in
- Wheelbase:
- 144 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output AWD
- Payload Capacity:
- 3,858 lbs
- Max Towing:
- 5,000 lbs [1]
- Cargo Volume:
- 319 cu.ft
- Seating Capacity:
- 3
Capacity
- Payload Capacity:
- 3,858 lbs
- Seating Capacity:
- 3
- Cargo Volume:
- 319 cu.ft
- Max Available GVWR:
- 9,050 lbs
- Base Curb Weight:
- 5,192 lbs
- Max Available GCWR:
- 13,930 lbs
- Max Towing:
- 5,000 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- UVW, lbs.:
- 7401 lbs
- Base Curb Weight (Rear), lbs.:
- TBD
- Base Curb Weight (Front), lbs.:
- TBD
- GAWR.R, lbs.:
- TBD
- GAWR.F (Option), lbs.:
- 4,409 lbs
- GAWR.F (Standard), lbs.:
- 4409 lbs
- Max. Tongue Weight, lbs.:
- 500 lbs
Measurements
- Standing Height:
- 68 in
- Cargo Bed Length:
- 133
- Turning Diameter (curb to curb):
- 45 ft
- Ground To First Step-Side:
- 25 in
- Load height, unloaded (ground to cargo floor):
- 31 in
- Door Opening-Side(Height):
- 60 in
- Door Opening-Rear(Height):
- 61 in
- Dual Door Width-Side:
- 51 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 133 in
- Cargo Width at Wheelhouse:
- 53 in
- Max Width at Floor:
- 70 in
- Interior Height:
- 67.7 in
- Tires & Load Ratings:
- 3086
- Center of Gravity Z, in:
- TBD
- Max. Height Center of Gravity Z , in:
- TBD
- Center of Gravity Y, in:
- TBD
- Center of Gravity X, in:
- TBD
- Rim:
- ET54
- Tire Track (Rear), in:
- 68.2 in
- Tire Track (Front), in:
- 67.2 in
- Overhang (Rear), in:
- 49.1 in
- Overhang (Front), in:
- 40.2 in
- Turning Circle (Wall to Wall):
- 519.7 m
- Available Rear Axle Ratios****:
- 60%/ 40%
- Loading Area:
- 54.3 sq ft
Powertrain
- Engine:
- 4-Cylinder Diesel High Output AWD
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp at 3,800 rpm
- Rated Torque:
- 332 lb-ft at 1,400-2,400 rpm
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Dimensions
- Overall Height:
- 96 in
- Overall Length:
- 234 in
- Overall Width with mirrors:
- 80 in
- Wheelbase:
- 144 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output
- Payload Capacity:
- 4,699 lbs
- Max Towing:
- 7,500 lbs [1]
- Cargo Volume:
- 223 cu ft
- Standing Height:
- 79 in
- Seating Capacity:
- 2-3
Capacity
- Payload Capacity:
- 4,699 lbs
- Seating Capacity:
- 2-3
- Cargo Volume:
- 223 cu ft
- Max Available GVWR:
- 9,990 lbs
- Base Curb Weight:
- 5,291 lbs
- Max Available GCWR:
- 15,250 lbs
- Max Towing:
- 7,500 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- Max. Tongue Weight, lbs.:
- 750 lbs
- GAWR.F (Standard), lbs.:
- 4,081 lbs
- GAWR.F (Option), lbs.:
- 4,409 lbs
- GAWR.R, lbs.:
- 7,059 lbs
- Base Curb Weight (Front), lbs.:
- 2,362 lbs
- Base Curb Weight (Rear), lbs.:
- 3,006 lbs
- UVW, lbs.:
- 7,401 lbs
Measurements
- Standing Height:
- 79 in
- Cargo Bed Length:
- 104 in
- Turning Diameter (curb to curb):
- 45 ft
- Ground To First Step-Side:
- 22 in
- Load height, unloaded (ground to cargo floor):
- 29 in
- Door Opening-Side(Height):
- 60 in
- Door Opening-Rear(Height):
- 61 in
- Dual Door Width-Side:
- 49.3 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 104 in
- Cargo Width at Wheelhouse:
- 39 in
- Max Width at Floor:
- 70 in
- Loading Area:
- 81 sq rt
- Turning Circle (Wall to Wall):
- 53 ft
- Available Rear Axle Ratios****:
- TBD
- Overhang (Front), in:
- 40 in
- Overhang (Rear), in:
- 80 in
- Tire Track (Front), in:
- 66.5 in
- Tire Track (Rear), in:
- 60.7 in
- Rim:
- HMA 125,5
- Center of Gravity X, in:
- 1,594 in
- Center of Gravity Z, in:
- 770 in
- Max. Height Center of Gravity Z , in:
- 51.2 in
- Center of Gravity Y, in:
- Interior Height:
- 79 in
- Tires & Load Ratings:
- 3,086
Powertrain
- Engine:
- 4-Cylinder Diesel High Output
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp at 3,800 rpm
- Rated Torque:
- 332 lb-ft at 1,400-2,400 rpm
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Cargo Van 3500XD
Dimensions
- Overall Height:
- 100 in
- Overall Length:
- 234 in
- Overall Width with mirrors:
- 80 in
- Wheelbase:
- 144 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output
- Payload Capacity:
- 5,739 lbs
- Max Towing:
- 7,500 lbs [1]
- Cargo Volume:
- 281 cu ft
- Standing Height:
- 68 in
- Seating Capacity:
- 2-3
Capacity
- Payload Capacity:
- 5,739 lbs
- Seating Capacity:
- 2-3
- Cargo Volume:
- 281 cu ft
- Max Available GVWR:
- 11,030 lbs
- Base Curb Weight:
- 5,291 lbs
- Max Available GCWR:
- 15,250 lbs
- Max Towing:
- 7,500 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- Max. Tongue Weight, lbs.:
- 750 lbs
- GAWR.F (Standard), lbs.:
- 4,081 lbs
- GAWR.F (Option), lbs.:
- 4,409 lbs
- GAWR.R, lbs.:
- 7,721 lbs
- Base Curb Weight (Front), lbs.:
- 2,362 lbs
- Base Curb Weight (Rear), lbs.:
- 3,006
- UVW, lbs.:
- 10,470 lbs
Measurements
- Standing Height:
- 68 in
- Cargo Bed Length:
- 133 in
- Turning Diameter (curb to curb):
- 45 ft
- Ground To First Step-Side:
- 22 in
- Load height, unloaded (ground to cargo floor):
- 29 in
- Door Opening-Side(Height):
- 60 in
- Door Opening-Rear(Height):
- 61 in
- Dual Door Width-Side:
- 51 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 133 in
- Cargo Width at Wheelhouse:
- 39 in
- Max Width at Floor:
- 70 in
- Loading Area:
- 51 sq ft
- Turning Circle (Wall to Wall):
- 48 ft
- Available Rear Axle Ratios****:
- 55%/ 45%
- Overhang (Front), in:
- 40 in
- Overhang (Rear), in:
- 49 in
- Tire Track (Front), in:
- 66.5 in
- Tire Track (Rear), in:
- 60.7 in
- Rim:
- HMA 125,5
- Center of Gravity X, in:
- TBD
- Center of Gravity Z, in:
- TBD
- Max. Height Center of Gravity Z , in:
- TBD
- Center of Gravity Y, in:
- TBD
- Tires & Load Ratings:
- 2,679
- Interior Height:
- 68 in
Powertrain
- Engine:
- 4-Cylinder Diesel High Output
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp at 3,800 rpm
- Rated Torque:
- 332 lb-ft at 1,400-2,400 rpm
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Cargo Van 3500XD
Dimensions
- Overall Height:
- 109 in
- Overall Length:
- 234 in
- Overall Width with mirrors:
- 80 in
- Wheelbase:
- 144 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output AWD
- Payload Capacity:
- 5,441 lbs
- Max Towing:
- 7,500 lbs [1]
- Cargo Volume:
- 281 cu ft
- Standing Height:
- 68 in
- Seating Capacity:
- 3
Capacity
- Payload Capacity:
- 5,441 lbs
- Seating Capacity:
- 3
- Cargo Volume:
- 281 cu ft
- Max Available GVWR:
- 11,030 lbs
- Base Curb Weight:
- 5,578 lbs
- Max Available GCWR:
- 13,930 lbs
- Max Towing:
- 7,500 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- GAWR.F (Standard), lbs.:
- 4,409 lbs
- Max. Tongue Weight, lbs.:
- 750 lbs
- GAWR.F (Option), lbs.:
- GAWR.R, lbs.:
- 7,721 lbs
- UVW, lbs.:
- 10,470 lbs
- Base Curb Weight (Rear), lbs.:
- 3,255 lbs
- Base Curb Weight (Front), lbs.:
- 2,841 lbs
Measurements
- Standing Height:
- 68 in
- Cargo Bed Length:
- 133 in
- Turning Diameter (curb to curb):
- 45 ft
- Ground To First Step-Side:
- 25 in
- Load height, unloaded (ground to cargo floor):
- 31 in
- Door Opening-Side(Height):
- 60 in
- Door Opening-Rear(Height):
- 61 in
- Dual Door Width-Side:
- 51 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 133 in
- Cargo Width at Wheelhouse:
- 39 in
- Max Width at Floor:
- 70 in
- Turning Circle (Wall to Wall):
- 46 ft
- Loading Area:
- 51 sq ft
- Available Rear Axle Ratios****:
- 56%/ 44%
- Overhang (Front), in:
- 40 in
- Overhang (Rear), in:
- 49 in
- Tire Track (Front), in:
- 66.8 in
- Tire Track (Rear), in:
- 60.7 in
- Rim:
- HMA 125,5
- Center of Gravity X, in:
- TBD
- Center of Gravity Y, in:
- TBD
- Max. Height Center of Gravity Z , in:
- TBD
- Center of Gravity Z, in:
- TBD
- Interior Height:
- 79 in
- Tires & Load Ratings:
- 2679
Powertrain
- Engine:
- 4-Cylinder Diesel High Output AWD
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp at 3,800 rpm
- Rated Torque:
- 332 lb-ft at 1,400-2,400 rpm
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Dimensions
- Overall Height:
- 98 in
- Overall Length:
- 234 in
- Overall Width with mirrors:
- 96 in
- Wheelbase:
- 144 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output
- Payload Capacity:
- 6,812 lbs
- Max Towing:
- 7,500 lbs [1]
- Cargo Volume:
- 281 cu ft
- Standing Height:
- 68 in
- Seating Capacity:
- 2-3
Capacity
- Payload Capacity:
- 6,812 lbs
- Seating Capacity:
- 2-3
- Cargo Volume:
- 281 cu ft
- Max Available GVWR:
- 12,125 lbs
- Base Curb Weight:
- 5,313 lbs
- Max Available GCWR:
- 15,250 lbs
- Max Towing:
- 7,500 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- UVW, lbs.:
- 11,373 lbs
- Base Curb Weight (Rear), lbs.:
- 3,019 lbs
- Max. Tongue Weight, lbs.:
- 750 lbs
- GAWR.F (Standard), lbs.:
- 4,630 lbs
- GAWR.F (Option), lbs.:
- GAWR.R, lbs.:
- 7,934 lbs
- Base Curb Weight (Front), lbs.:
- 2,372 lbs
Measurements
- Standing Height:
- 68 in
- Cargo Bed Length:
- 133 in
- Turning Diameter (curb to curb):
- 45 ft
- Ground To First Step-Side:
- 22 in
- Load height, unloaded (ground to cargo floor):
- 29 in
- Door Opening-Side(Height):
- 60 in
- Door Opening-Rear(Height):
- 61 in
- Dual Door Width-Side:
- 51 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 133 in
- Cargo Width at Wheelhouse:
- 39 in
- Max Width at Floor:
- 70 in
- Turning Circle (Wall to Wall):
- 48 ft
- Loading Area:
- 51 sq ft
- Available Rear Axle Ratios****:
- 55% / 45%
- Overhang (Front), in:
- 40 in
- Overhang (Rear), in:
- 49 in
- Tire Track (Front), in:
- 66 in
- Tire Track (Rear), in:
- 60.7 in
- Rim:
- HMA 125,5
- Center of Gravity X, in:
- TBD
- Center of Gravity Z, in:
- TBD
- Max. Height Center of Gravity Z , in:
- TBD
- Center of Gravity Y, in:
- TBD
- Tires & Load Ratings:
- 2679
- Interior Height:
- 68 in
Powertrain
- Engine:
- 4-Cylinder Diesel High Output
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp at 3,800 rpm
- Rated Torque:
- 332 lb-ft at 1,400-2,400 rpm
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
2025
Cargo Van 2500
Dimensions
- Overall Height:
- 107 in
- Overall Length:
- 234 in
- Overall Width with mirrors:
- 92 in
- Wheelbase:
- 144 in
Key Features
- Engine:
- 4-Cylinder Diesel Standard Output
- Payload Capacity:
- 4,134 lbs
- Max Towing:
- 5,000 lbs [1]
- Cargo Volume:
- 374 cu ft
- Standing Height:
- 79 in
- Seating Capacity:
- 2-3
Capacity
- Payload Capacity:
- 4,134 lbs
- Seating Capacity:
- 2-3
- Cargo Volume:
- 374 cu ft
- Max Available GVWR:
- 9,050 lbs
- Base Curb Weight:
- 4,916 lbs
- Max Available GCWR:
- 13,930 lbs
- Max Towing:
- 5,000 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- UVW, lbs.:
- 7401 lbs
- Max. Tongue Weight, lbs.:
- 500 lbs
- GAWR.F (Standard), lbs.:
- 4,101 lbs
- GAWR.F (Option), lbs.:
- 4,409 lbs
- Base Curb Weight (Front), lbs.:
- 2,025 lbs
- Base Curb Weight (Rear), lbs.:
- 2,914 lbs
- GAWR.R, lbs.:
- 5,359 lbs
Measurements
- Standing Height:
- 79 in
- Cargo Bed Length:
- 133 in
- Turning Diameter (curb to curb):
- 45 ft
- Ground To First Step-Side:
- 21 in
- Load height, unloaded (ground to cargo floor):
- 28 in
- Door Opening-Side(Height):
- 72 in
- Door Opening-Rear(Height):
- 73 in
- Dual Door Width-Side:
- 50 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 133 in
- Cargo Width at Wheelhouse:
- 53 in
- Max Width at Floor:
- 70 in
- Loading Area:
- 54 sqft
- Turning Circle (Wall to Wall):
- 44 ft
- Available Rear Axle Ratios****:
- 59%/ 41%
- Overhang (Front), in:
- 40 in
- Overhang (Rear), in:
- 49 in
- Tire Track (Front), in:
- 67.2 in
- Tire Track (Rear), in:
- 68.2 in
- Rim:
- ET54
- Center of Gravity X, in:
- TBD
- Center of Gravity Z, in:
- TBD
- Max. Height Center of Gravity Z , in:
- TBD
- Center of Gravity Y, in:
- TBD
- Tires & Load Ratings:
- 3086
- Interior Height:
- 79 in
Powertrain
- Engine:
- 4-Cylinder Diesel Standard Output
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 170 hp at 3800 rpm
- Rated Torque:
- 295 lb-ft at 1,400 -2,400 rpm
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Dimensions
- Overall Height:
- 107 in
- Overall Length:
- 234 in
- Overall Width with mirrors:
- 92 in
- Wheelbase:
- 144 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output
- Payload Capacity:
- 4,134 lbs
- Max Towing:
- 5,000 lbs [1]
- Cargo Volume:
- 374 cu ft
- Standing Height:
- 79 in
- Seating Capacity:
- 2-3
Capacity
- Payload Capacity:
- 4,134 lbs
- Seating Capacity:
- 2-3
- Cargo Volume:
- 374 cu ft
- Max Available GVWR:
- 9,050 lbs
- Base Curb Weight:
- 4,916 lbs
- Max Available GCWR:
- 13,930 lbs
- Max Towing:
- 5,000 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- Base Curb Weight (Rear), lbs.:
- 2,996 lbs
- UVW, lbs.:
- 7401 lbs
- Base Curb Weight (Front), lbs.:
- 1,997 lbs
- GAWR.R, lbs.:
- 5,359 lbs
- Max. Tongue Weight, lbs.:
- 500 lbs
- GAWR.F (Standard), lbs.:
- 4,101 lbs
- GAWR.F (Option), lbs.:
- 4,409 lbs
Measurements
- Standing Height:
- 79 in
- Cargo Bed Length:
- 133 in
- Turning Diameter (curb to curb):
- 45 ft
- Ground To First Step-Side:
- 21 in
- Load height, unloaded (ground to cargo floor):
- 28 in
- Door Opening-Side(Height):
- 72 in
- Door Opening-Rear(Height):
- 73 in
- Dual Door Width-Side:
- 50 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 133 in
- Cargo Width at Wheelhouse:
- 53 in
- Max Width at Floor:
- 70 in
- Interior Height:
- 79 in
- Tires & Load Ratings:
- 3086
- Center of Gravity Z, in:
- TBD
- Max. Height Center of Gravity Z , in:
- TBD
- Center of Gravity Y, in:
- TBD
- Center of Gravity X, in:
- TBD
- Rim:
- ET54
- Tire Track (Rear), in:
- 68.2 in
- Overhang (Front), in:
- 40 in
- Overhang (Rear), in:
- 49 in
- Tire Track (Front), in:
- 67.2 in
- Available Rear Axle Ratios****:
- 59%/ 41%
- Turning Circle (Wall to Wall):
- 44 ft
- Loading Area:
- 54 sqft
Powertrain
- Engine:
- 4-Cylinder Diesel High Output
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp at 3,800 rpm
- Rated Torque:
- 332 lb-ft at 1,400-2,400 rpm
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Cargo Van 2500
Dimensions
- Overall Height:
- 111 in
- Overall Length:
- 234 in
- Overall Width with mirrors:
- 92 in
- Wheelbase:
- 144 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output AWD
- Payload Capacity:
- 3,781 lbs
- Max Towing:
- 5,000 lbs [1]
- Cargo Volume:
- 374 cu.ft
- Standing Height:
- 79 in
- Seating Capacity:
- 2-3
Capacity
- Payload Capacity:
- 3,781 lbs
- Seating Capacity:
- 2-3
- Cargo Volume:
- 374 cu.ft
- Max Available GVWR:
- 9,050 lbs
- Base Curb Weight:
- 5,269 lbs
- Max Available GCWR:
- 13,930 lbs
- Max Towing:
- 5,000 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- UVW, lbs.:
- 7401 lbs
- Base Curb Weight (Rear), lbs.:
- TBD
- Base Curb Weight (Front), lbs.:
- TBD
- GAWR.R, lbs.:
- 5,359 lbs
- GAWR.F (Option), lbs.:
- TBD
- GAWR.F (Standard), lbs.:
- 4409 lbs
- Max. Tongue Weight, lbs.:
- 500 lbs
Measurements
- Standing Height:
- 79 in
- Cargo Bed Length:
- 133 in
- Turning Diameter (curb to curb):
- 45 ft
- Ground To First Step-Side:
- 25 in
- Load height, unloaded (ground to cargo floor):
- 31 in
- Door Opening-Side(Height):
- 72 in
- Door Opening-Rear(Height):
- 73 in
- Dual Door Width-Side:
- 50 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 133 in
- Cargo Width at Wheelhouse:
- 53 in
- Max Width at Floor:
- 74 in
- Loading Area:
- 54.3 sq ft
- Turning Circle (Wall to Wall):
- 519.7 m
- Available Rear Axle Ratios****:
- 60%/ 40%
- Overhang (Front), in:
- 40.2 in
- Overhang (Rear), in:
- 49.1 in
- Tire Track (Front), in:
- 67.2 in
- Tire Track (Rear), in:
- 68.2 in
- Rim:
- 6,5J x 16
- Center of Gravity X, in:
- TBD
- Center of Gravity Z, in:
- TBD
- Max. Height Center of Gravity Z , in:
- TBD
- Center of Gravity Y, in:
- TBD
Powertrain
- Engine:
- 4-Cylinder Diesel High Output AWD
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp at 3,800 rpm
- Rated Torque:
- 332 lb-ft at 1,400-2,400 rpm
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Dimensions
- Overall Height:
- 109 in
- Overall Length:
- 234 in
- Overall Width with mirrors:
- 80 in
- Wheelbase:
- 144 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output
- Payload Capacity:
- 4,622 lbs
- Max Towing:
- 7,500 lbs [1]
- Cargo Volume:
- 329 cu ft
- Standing Height:
- 79 in
- Seating Capacity:
- 2-3
Capacity
- Payload Capacity:
- 4,622 lbs
- Seating Capacity:
- 2-3
- Cargo Volume:
- 329 cu ft
- Max Available GVWR:
- 9,990 lbs
- Base Curb Weight:
- 5,368 lbs
- Max Available GCWR:
- 15,250 lbs
- Max Towing:
- 7,500 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
Measurements
- Standing Height:
- 79 in
- Cargo Bed Length:
- 133 in
- Turning Diameter (curb to curb):
- 45 ft
- Ground To First Step-Side:
- 22 in
- Load height, unloaded (ground to cargo floor):
- 29 in
- Door Opening-Side(Height):
- 72 in
- Door Opening-Rear(Height):
- 73 in
- Dual Door Width-Side:
- 51 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 133 in
- Cargo Width at Wheelhouse:
- 39 in
- Max Width at Floor:
- 70 in
Powertrain
- Engine:
- 4-Cylinder Diesel High Output
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp at 3,800 rpm
- Rated Torque:
- 332 lb-ft at 1,400-2,400 rpm
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Cargo Van 3500XD
Dimensions
- Overall Height:
- 109 in
- Overall Length:
- 234 in
- Overall Width with mirrors:
- 96 in
- Wheelbase:
- 144 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output
- Payload Capacity:
- 5,662 lbs
- Max Towing:
- 7,500 lbs [1]
- Cargo Volume:
- 329 cu ft
- Seating Capacity:
- 2-3
Capacity
- Payload Capacity:
- 5,662 lbs
- Seating Capacity:
- 2-3
- Cargo Volume:
- 329 cu ft
- Max Available GVWR:
- 11,030 lbs
- Base Curb Weight:
- 5,368 lbs
- Max Available GCWR:
- 15,250 lbs
- Max Towing:
- 7,500 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- Max. Tongue Weight, lbs.:
- 750 lbs
- GAWR.F (Standard), lbs.:
- 4,081 lbs
- GAWR.F (Option), lbs.:
- 4,409 lbs
- GAWR.R, lbs.:
- 7,721 lbs
- Base Curb Weight (Front), lbs.:
- 2,396 lbs
- Base Curb Weight (Rear), lbs.:
- 3,049 lbs
- UVW, lbs.:
- 10,470 lbs
Measurements
- Standing Height:
- 79 in
- Cargo Bed Length:
- 133 in
- Turning Diameter (curb to curb):
- 45 ft
- Ground To First Step-Side:
- 22 in
- Load height, unloaded (ground to cargo floor):
- 29 in
- Door Opening-Side(Height):
- 72 in
- Door Opening-Rear(Height):
- 73 in
- Dual Door Width-Side:
- 50 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 133 in
- Cargo Width at Wheelhouse:
- 39 in
- Max Width at Floor:
- 70 in
- Loading Area:
- 51 sq ft
- Turning Circle (Wall to Wall):
- 48 ft
- Available Rear Axle Ratios****:
- 55%/ 45%
- Overhang (Front), in:
- 40 in
- Overhang (Rear), in:
- 49 in
- Tire Track (Front), in:
- 66.5 in
- Tire Track (Rear), in:
- 60.7 in
- Rim:
- HMA 125,5
- Center of Gravity X, in:
- TBD
- Center of Gravity Z, in:
- TBD
- Max. Height Center of Gravity Z , in:
- TBD
- Center of Gravity Y, in:
- TBD
- Tires & Load Ratings:
- 2679
- Interior Height:
- 79 in
Powertrain
- Engine:
- 4-Cylinder Diesel High Output
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp at 3,800 rpm
- Rated Torque:
- 332 lb-ft at 1,400-2,400 rpm
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Cargo Van 3500XD
Dimensions
- Overall Height:
- 111 in
- Overall Length:
- 234 in
- Overall Width with mirrors:
- 96 in
- Wheelbase:
- 144 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output AWD
- Payload Capacity:
- 5,353 lbs
- Max Towing:
- 7,500 lbs [1]
- Cargo Volume:
- 329 cu ft
- Standing Height:
- 79 in
- Seating Capacity:
- 3
Capacity
- Payload Capacity:
- 5,353 lbs
- Seating Capacity:
- 3
- Cargo Volume:
- 329 cu ft
- Max Available GVWR:
- 11,030 lbs
- Base Curb Weight:
- 5,677 lbs
- Max Available GCWR:
- 15,250 lbs
- Max Towing:
- 7,500 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- GAWR.F (Standard), lbs.:
- 4,409 lbs
- Max. Tongue Weight, lbs.:
- 750 lbs
- GAWR.F (Option), lbs.:
- TBD
- GAWR.R, lbs.:
- 7,721 lbs
- UVW, lbs.:
- 10,470 lbs
- Base Curb Weight (Rear), lbs.:
- TBD
- Base Curb Weight (Front), lbs.:
- TBD
Measurements
- Standing Height:
- 79 in
- Cargo Bed Length:
- 133 in
- Turning Diameter (curb to curb):
- 45 ft
- Ground To First Step-Side:
- 25 in
- Load height, unloaded (ground to cargo floor):
- 31 in
- Door Opening-Side(Height):
- 72 in
- Door Opening-Rear(Height):
- 73 in
- Dual Door Width-Side:
- 51 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 133 in
- Cargo Width at Wheelhouse:
- 39 in
- Max Width at Floor:
- 70 in
- Loading Area:
- 51 sq ft
- Available Rear Axle Ratios****:
- 56%/ 44%
- Turning Circle (Wall to Wall):
- 46 ft
- Overhang (Front), in:
- 40 in
- Overhang (Rear), in:
- 49 in
- Tire Track (Front), in:
- 66.8 in
- Tire Track (Rear), in:
- 60.7 in
- Rim:
- HMA 125,5
- Center of Gravity X, in:
- TBD
- Center of Gravity Y, in:
- TBD
- Max. Height Center of Gravity Z , in:
- TBD
- Center of Gravity Z, in:
- TBD
- Interior Height:
- 79 in
- Tires & Load Ratings:
- 2679
Powertrain
- Engine:
- 4-Cylinder Diesel High Output AWD
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp at 3,800 rpm
- Rated Torque:
- 332 lb-ft at 1,400-2,400 rpm
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Dimensions
- Overall Height:
- 109 in
- Overall Length:
- 234 in
- Overall Width with mirrors:
- 96 in
- Wheelbase:
- 144 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output
- Payload Capacity:
- 6,735 lbs
- Max Towing:
- 7,500 lbs [1]
- Cargo Volume:
- 281 cu ft
- Standing Height:
- 79 in
- Seating Capacity:
- 2-3
Capacity
- Payload Capacity:
- 6,735 lbs
- Seating Capacity:
- 2-3
- Cargo Volume:
- 281 cu ft
- Max Available GVWR:
- 12,125 lbs
- Base Curb Weight:
- 5,390 lbs
- Max Available GCWR:
- 15,250 lbs
- Max Towing:
- 7,500 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- UVW, lbs.:
- 11,373 lbs
- Base Curb Weight (Rear), lbs.:
- 3,068 lbs
- Max. Tongue Weight, lbs.:
- 750 lbs
- GAWR.F (Standard), lbs.:
- 4,630 lbs
- GAWR.F (Option), lbs.:
- GAWR.R, lbs.:
- 7,934lbs
- Base Curb Weight (Front), lbs.:
- 2,410 lbs
Measurements
- Standing Height:
- 79 in
- Cargo Bed Length:
- 133 in
- Turning Diameter (curb to curb):
- 45 ft
- Ground To First Step-Side:
- 22 in
- Load height, unloaded (ground to cargo floor):
- 29 in
- Door Opening-Side(Height):
- 72 in
- Door Opening-Rear(Height):
- 73 in
- Dual Door Width-Side:
- 51 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 133 in
- Cargo Width at Wheelhouse:
- 39 in
- Max Width at Floor:
- 70 in
- Turning Circle (Wall to Wall):
- 48 sq ft
- Loading Area:
- 51 sq ft
- Available Rear Axle Ratios****:
- 55% / 45%
- Overhang (Front), in:
- 40 in
- Overhang (Rear), in:
- 49 in
- Tire Track (Front), in:
- 66 in
- Tire Track (Rear), in:
- 60.7 in
- Rim:
- HMA 125,5
- Center of Gravity X, in:
- TBD
- Center of Gravity Z, in:
- TBD
- Max. Height Center of Gravity Z , in:
- TBD
- Center of Gravity Y, in:
- TBD
- Tires & Load Ratings:
- 2679
- Interior Height:
- 79 in
Powertrain
- Engine:
- 4-Cylinder Diesel High Output
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp at 3,800 rpm
- Rated Torque:
- 332 lb-ft at 1,400-2,400 rpm
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
2025
Cargo Van 2500
Dimensions
- Overall Height:
- 107 in
- Overall Length:
- 274 in
- Overall Width with mirrors:
- 92 in
- Wheelbase:
- 170 in
Key Features
- Engine:
- : 4-Cylinder Diesel Standard Output
- Payload Capacity:
- 3,814 lbs
- Max Towing:
- 5,000 lbs [1]
- Cargo Volume:
- 488 cu ft
- Standing Height:
- 79 in
- Seating Capacity:
- 2-3
Capacity
- Payload Capacity:
- 3,814 lbs
- Seating Capacity:
- 2-3
- Cargo Volume:
- 488 cu ft
- Max Available GVWR:
- 9,050 lbs
- Base Curb Weight:
- 5,236 lbs
- Max Available GCWR:
- 13,930 lbs
- Max Towing:
- 5,000 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- UVW, lbs.:
- 7401 lbs
- Base Curb Weight (Rear), lbs.:
- 3,050 lbs
- Base Curb Weight (Front), lbs.:
- 2,208 lbs
- GAWR.R, lbs.:
- 5,359 lbs
- Max. Tongue Weight, lbs.:
- 500 lbs
- GAWR.F (Standard), lbs.:
- 4101 lbs
- GAWR.F (Option), lbs.:
- 4409 Ibs
Measurements
- Standing Height:
- 79 in
- Cargo Bed Length:
- 173 in
- Turning Diameter (curb to curb):
- 52 ft
- Ground To First Step-Side:
- 20 in
- Load height, unloaded (ground to cargo floor):
- 27 in
- Door Opening-Side(Height):
- 72 in
- Door Opening-Rear(Height):
- 73 in
- Dual Door Width-Side:
- 51 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 174 in
- Cargo Width at Wheelhouse:
- 53 in
- Max Width at Floor:
- 70 in
Powertrain
- Engine:
- : 4-Cylinder Diesel Standard Output
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 170 hp at 3,800 rpm
- Rated Torque:
- 295 lbf -ft at 1,400-2,400 rpm
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Dimensions
- Overall Height:
- 107 in
- Overall Length:
- 274 in
- Overall Width with mirrors:
- 92 in
- Wheelbase:
- 170 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output
- Payload Capacity:
- 3,814 lbs
- Max Towing:
- 5,000 lbs [1]
- Cargo Volume:
- 488 cu.ft
- Standing Height:
- 79 in
- Seating Capacity:
- 3
Capacity
- Payload Capacity:
- 3,814 lbs
- Seating Capacity:
- 3
- Cargo Volume:
- 488 cu.ft
- Max Available GVWR:
- 9,050 lbs
- Base Curb Weight:
- 5,236 lbs
- Max Available GCWR:
- 13,930 lbs
- Max Towing:
- 5,000 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- Max. Tongue Weight, lbs.:
- 500 lbs
- GAWR.F (Standard), lbs.:
- 4,101lbs
- GAWR.F (Option), lbs.:
- 4,409 lbs
- GAWR.R, lbs.:
- 5,359 lbs
- Base Curb Weight (Front), lbs.:
- 2,232 lbs
- Base Curb Weight (Rear), lbs.:
- 3,082 lbs
- UVW, lbs.:
- 7,401 lbs
Measurements
- Standing Height:
- 79 in
- Cargo Bed Length:
- 174 in
- Turning Diameter (curb to curb):
- 52 ft
- Ground To First Step-Side:
- 20 in
- Load height, unloaded (ground to cargo floor):
- 27 in
- Door Opening-Side(Height):
- 72 in
- Door Opening-Rear(Height):
- 73 in
- Dual Door Width-Side:
- 51 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 174 in
- Cargo Width at Wheelhouse:
- 53 in
- Max Width at Floor:
- 70 in
- Loading Area:
- 74 sq rt
- Turning Circle (Wall to Wall):
- 50 ft
- Overhang (Front), in:
- 40 in
- Available Rear Axle Ratios****:
- 58%/ 42%
- Overhang (Rear), in:
- 64 in
- Tire Track (Front), in:
- 66 in
- Tire Track (Rear), in:
- 60.7 in
- Rim:
- ET54
- Center of Gravity X, in:
- TBD
- Center of Gravity Z, in:
- TBD
- Max. Height Center of Gravity Z , in:
- TBD
- Center of Gravity Y, in:
- TBD
- Tires & Load Ratings:
- 3086
- Interior Height:
- 79 in
Powertrain
- Engine:
- 4-Cylinder Diesel High Output
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp at 3,800 rpm
- Rated Torque:
- 332 lb-ft at 1,400-2,400 rpm
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Cargo Van 2500
Dimensions
- Overall Height:
- 111 in
- Overall Length:
- 274 in
- Overall Width with mirrors:
- 92 in
- Wheelbase:
- 170 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output AWD
- Payload Capacity:
- 3,450 lbs
- Max Towing:
- 5,000 lbs [1]
- Cargo Volume:
- 488 cu ft
- Standing Height:
- 79 in
- Seating Capacity:
- 2-3
Capacity
- Payload Capacity:
- 3,450 lbs
- Seating Capacity:
- 2-3
- Cargo Volume:
- 488 cu ft
- Max Available GVWR:
- 9,050 lbs
- Base Curb Weight:
- 5,600 lbs
- Max Available GCWR:
- 13,930 lbs
- Max Towing:
- 5,000 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- Base Curb Weight (Front), lbs.:
- 2,328 lbs
- Max. Tongue Weight, lbs.:
- 500 lbs
- GAWR.F (Standard), lbs.:
- 4,409 lbs
- GAWR.F (Option), lbs.:
- UVW, lbs.:
- 7,401 lbs
- Base Curb Weight (Rear), lbs.:
- 3,349 lbs
- GAWR.R, lbs.:
- 5,359 lbs
Measurements
- Standing Height:
- 79 in
- Cargo Bed Length:
- 174 in
- Turning Diameter (curb to curb):
- 52 ft
- Ground To First Step-Side:
- 24.2 in
- Load height, unloaded (ground to cargo floor):
- 31 in
- Door Opening-Side(Height):
- 72 in
- Door Opening-Rear(Height):
- 73 in
- Dual Door Width-Side:
- 51 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 174 in
- Cargo Width at Wheelhouse:
- 53 in
- Max Width at Floor:
- 70 in
- Loading Area:
- 74 sq rt
- Turning Circle (Wall to Wall):
- 53 ft
- Overhang (Front), in:
- 40 in
- Available Rear Axle Ratios****:
- 58%/ 42%
- Overhang (Rear), in:
- 64 in
- Tire Track (Front), in:
- 66 in
- Tire Track (Rear), in:
- 60.7 in
- Rim:
- ET54
- Center of Gravity X, in:
- TBD
- Center of Gravity Z, in:
- TBD
- Max. Height Center of Gravity Z , in:
- TBD
- Center of Gravity Y, in:
- TBD
- Tires & Load Ratings:
- 3086
- Interior Height:
- 79 in
Powertrain
- Engine:
- 4-Cylinder Diesel High Output AWD
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp at 3,800 rpm
- Rated Torque:
- 332 lb-ft at 1,400-2,400 rpm
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Dimensions
- Overall Height:
- 109 in
- Overall Length:
- 274 in
- Overall Width with mirrors:
- 80 in
- Wheelbase:
- 170 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output
- Payload Capacity:
- 4,269 lbs
- Max Towing:
- 7,500 lbs [1]
- Cargo Volume:
- 430 cu ft
- Standing Height:
- 79 in
- Seating Capacity:
- 2-3
Capacity
- Payload Capacity:
- 4,269 lbs
- Seating Capacity:
- 2-3
- Cargo Volume:
- 430 cu ft
- Max Available GVWR:
- 9,990 lbs
- Base Curb Weight:
- 5,721 lbs
- Max Available GCWR:
- 15,250 lbs
- Max Towing:
- 7,500 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- GAWR.F (Standard), lbs.:
- 4,081
- GAWR.F (Option), lbs.:
- 4,409 lbs
- GAWR.R, lbs.:
- 7,059 lbs
- Max. Tongue Weight, lbs.:
- 750 lbs
- Base Curb Weight (Front), lbs.:
- 2,667 lbs
- Base Curb Weight (Rear), lbs.:
- 3,131
- UVW, lbs.:
- 7,401 lbs
Measurements
- Standing Height:
- 79 in
- Cargo Bed Length:
- 174 in
- Turning Diameter (curb to curb):
- 52 ft
- Ground To First Step-Side:
- 21 in
- Load height, unloaded (ground to cargo floor):
- 29 in
- Door Opening-Side(Height):
- 72 in
- Door Opening-Rear(Height):
- 73 in
- Dual Door Width-Side:
- 51 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 174 in
- Cargo Width at Wheelhouse:
- 39 in
- Max Width at Floor:
- 70 in
- Loading Area:
- 70 sq ft
- Turning Circle (Wall to Wall):
- 55 ft
- Available Rear Axle Ratios****:
- 54%/ 46%
- Overhang (Front), in:
- 40 in
- Overhang (Rear), in:
- 64 in
- Tire Track (Front), in:
- 66.5 in
- Tire Track (Rear), in:
- 60.7 in
- Rim:
- HMA 125,5
- Center of Gravity X, in:
- TBD
- Center of Gravity Z, in:
- TBD
- Max. Height Center of Gravity Z , in:
- TBD
- Center of Gravity Y, in:
- TBD
- Interior Height:
- 79 in
- Tires & Load Ratings:
- 3,086
Powertrain
- Engine:
- 4-Cylinder Diesel High Output
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp at 3,800 rpm
- Rated Torque:
- 332 lb-ft at 1,400-2,400 rpm
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Cargo Van 3500XD
Dimensions
- Overall Height:
- 109 in
- Overall Length:
- 274 in
- Overall Width with mirrors:
- 80 in
- Wheelbase:
- 170 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output
- Payload Capacity:
- 5,309 lbs
- Max Towing:
- 7,500 lbs [1]
- Cargo Volume:
- 430 cu ft
- Standing Height:
- 79 in
- Seating Capacity:
- 2-3
Capacity
- Payload Capacity:
- 5,309 lbs
- Seating Capacity:
- 2-3
- Cargo Volume:
- 430 cu ft
- Max Available GVWR:
- 11,030 lbs
- Base Curb Weight:
- 5,721 lbs
- Max Available GCWR:
- 15,250 lbs
- Max Towing:
- 7,500 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- Base Curb Weight (Rear), lbs.:
- 3,131 lbs
- Max. Tongue Weight, lbs.:
- 750 lbs
- GAWR.F (Standard), lbs.:
- 4,081 lbs
- GAWR.R, lbs.:
- 7,721 lbs
- Base Curb Weight (Front), lbs.:
- 2,667 lbs
- UVW, lbs.:
- 10,470 lbs
- GAWR.F (Option), lbs.:
- 4,409 lbs
Measurements
- Standing Height:
- 79 in
- Cargo Bed Length:
- 174 in
- Turning Diameter (curb to curb):
- 53 ft
- Ground To First Step-Side:
- 21 in
- Load height, unloaded (ground to cargo floor):
- 29 in
- Door Opening-Side(Height):
- 72 in
- Door Opening-Rear(Height):
- 73 in
- Dual Door Width-Side:
- 51 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 174 in
- Cargo Width at Wheelhouse:
- 39 in
- Max Width at Floor:
- 70 in
- Loading Area:
- 70 sq ft
- Turning Circle (Wall to Wall):
- 55 ft
- Available Rear Axle Ratios****:
- 54% / 46%
- Overhang (Front), in:
- 40 in
- Overhang (Rear), in:
- 64 in
- Tire Track (Front), in:
- 66.5 in
- Tire Track (Rear), in:
- 60.7 in
- Rim:
- HMA 125,5
- Center of Gravity X, in:
- TBD
- Center of Gravity Z, in:
- TBD
- Max. Height Center of Gravity Z , in:
- TBD
- Center of Gravity Y, in:
- TBD
- Tires & Load Ratings:
- 2679
- Interior Height:
- 79 in
Powertrain
- Engine:
- 4-Cylinder Diesel High Output
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp at 3,800 rpm
- Rated Torque:
- 332 lb-ft at 1,400-2,400 rpm
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Cargo Van 3500XD
Dimensions
- Overall Height:
- 111 in
- Overall Length:
- 274 in
- Overall Width with mirrors:
- 96 in
- Wheelbase:
- 170 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output AWD
- Payload Capacity:
- 5,000 lbs
- Max Towing:
- 7,500 lbs [1]
- Cargo Volume:
- 430 cu ft
- Standing Height:
- 79 in
- Seating Capacity:
- 3
Capacity
- Payload Capacity:
- 5,000 lbs
- Seating Capacity:
- 3
- Cargo Volume:
- 430 cu ft
- Max Available GVWR:
- 11,030 lbs
- Base Curb Weight:
- 5,721 lbs
- Max Available GCWR:
- 15,250 lbs
- Max Towing:
- 7,500 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- Base Curb Weight (Rear), lbs.:
- 3,359 lbs
- Max. Tongue Weight, lbs.:
- 750 lbs
- GAWR.F (Standard), lbs.:
- 4,409 lbs
- GAWR.F (Option), lbs.:
- TBD
- UVW, lbs.:
- 10,470 lbs
- Base Curb Weight (Front), lbs.:
- 2,748 lbs
- GAWR.R, lbs.:
- 7,721 lbs
Measurements
- Standing Height:
- 79 in
- Cargo Bed Length:
- 174 in
- Turning Diameter (curb to curb):
- 53 ft
- Ground To First Step-Side:
- 24.3 in
- Load height, unloaded (ground to cargo floor):
- 31 in
- Door Opening-Side(Height):
- 72 in
- Door Opening-Rear(Height):
- 73 in
- Dual Door Width-Side:
- 51 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 174 in
- Cargo Width at Wheelhouse:
- 39 in
- Max Width at Floor:
- 70 in
- Loading Area:
- 70 sq ft
- Turning Circle (Wall to Wall):
- 53 ft
- Available Rear Axle Ratios****:
- 55% / 45%
- Overhang (Front), in:
- 40 in
- Overhang (Rear), in:
- 64 in
- Tire Track (Front), in:
- 66 in
- Tire Track (Rear), in:
- 60.7 in
- Rim:
- HMA 125,5
- Center of Gravity Z, in:
- 770 in
- Center of Gravity X, in:
- 1,449 in
- Max. Height Center of Gravity Z , in:
- 51.2 in
- Center of Gravity Y, in:
- Interior Height:
- 79 in
- Tires & Load Ratings:
- 2679
Powertrain
- Engine:
- 4-Cylinder Diesel High Output AWD
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp at 3,800 rpm
- Rated Torque:
- 332 lb-ft at 1,400-2,400 rpm
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Dimensions
- Overall Height:
- 109 in
- Overall Length:
- 274 in
- Overall Width with mirrors:
- 96 in
- Wheelbase:
- 170 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output
- Payload Capacity:
- 6,382 lbs
- Max Towing:
- 7,500 lbs [1]
- Cargo Volume:
- 430 cu ft
- Standing Height:
- 79 in
Capacity
- Payload Capacity:
- 6,382 lbs
- Seating Capacity:
- 2-3
- Cargo Volume:
- 430 cu ft
- Max Available GVWR:
- 12,125 lbs
- Base Curb Weight:
- 5,743 lbs
- Max Available GCWR:
- 15,250 lbs
- Max Towing:
- 7,500 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- UVW, lbs.:
- 11,373 lbs
- Base Curb Weight (Rear), lbs.:
- 3,259 lbs
- Max. Tongue Weight, lbs.:
- 750 lbs
- GAWR.F (Standard), lbs.:
- 4,630 lbs
- GAWR.F (Option), lbs.:
- Base Curb Weight (Front), lbs.:
- 2,561 lbs
- GAWR.R, lbs.:
- 7,934lbs
Measurements
- Standing Height:
- 79 in
- Cargo Bed Length:
- 174 in
- Turning Diameter (curb to curb):
- 53 ft
- Ground To First Step-Side:
- 21 in
- Load height, unloaded (ground to cargo floor):
- 29 in
- Door Opening-Side(Height):
- 72 in
- Door Opening-Rear(Height):
- 73 in
- Dual Door Width-Side:
- 51 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 174 in
- Cargo Width at Wheelhouse:
- 39 in
- Max Width at Floor:
- 70 in
- Loading Area:
- 70 sq ft
- Turning Circle (Wall to Wall):
- 55 ft
- Available Rear Axle Ratios****:
- 54% / 46%
- Overhang (Front), in:
- 40 in
- Overhang (Rear), in:
- 64 in
- Tire Track (Front), in:
- 66 in
- Tire Track (Rear), in:
- 60.7 in
- Rim:
- HMA 125,5
- Center of Gravity X, in:
- TBD
- Center of Gravity Z, in:
- TBD
- Max. Height Center of Gravity Z , in:
- TBD
- Center of Gravity Y, in:
- TBD
- Tires & Load Ratings:
- 2679
- Interior Height:
- 79 in
Powertrain
- Engine:
- 4-Cylinder Diesel High Output
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp at 3,800 rpm
- Rated Torque:
- 332 lb-ft at 1,400-2,400 rpm
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
2025
Cargo Van 2500
Dimensions
- Overall Height:
- 107 in
- Overall Length:
- 290 in
- Overall Width with mirrors:
- 92 in
- Wheelbase:
- 170 in
Key Features
- Engine:
- 4-Cylinder Diesel Standard Output
- Payload Capacity:
- 3,704 lbs
- Max Towing:
- 5,000 lbs [1]
- Cargo Volume:
- 533 cu ft
- Standing Height:
- 79 in
- Seating Capacity:
- 2-3
Capacity
- Payload Capacity:
- 3,704 lbs
- Seating Capacity:
- 2-3
- Cargo Volume:
- 533 cu ft
- Max Available GVWR:
- 9,050 lbs
- Base Curb Weight:
- 5,346 lbs
- Max Available GCWR:
- 13,930 lbs
- Max Towing:
- 5,000 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- Base Curb Weight (Front), lbs.:
- 2,416 lbs
- UVW, lbs.:
- 7401 Ibs
- Base Curb Weight (Rear), lbs.:
- 2,954 lbs
- Max. Tongue Weight, lbs.:
- 500 Ibs
- GAWR.F (Option), lbs.:
- 4409 Ibs
- GAWR.F (Standard), lbs.:
- 4101 Ibs
- GAWR.R, lbs.:
- 5359 Ibs
Measurements
- Standing Height:
- 79 in
- Cargo Bed Length:
- 189 in
- Turning Diameter (curb to curb):
- 52 ft
- Ground To First Step-Side:
- 20 in
- Load height, unloaded (ground to cargo floor):
- 27 in
- Door Opening-Side(Height):
- 72 in
- Door Opening-Rear(Height):
- 73 in
- Dual Door Width-Side:
- 51 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 189 in
- Cargo Width at Wheelhouse:
- 53 in
- Max Width at Floor:
- 70 in
- Loading Area:
- 81 sq ft
- Turning Circle (Wall to Wall):
- 50 ft
- Available Rear Axle Ratios****:
- 55% / 45%
- Overhang (Front), in:
- 40 in
- Overhang (Rear), in:
- 80 in
- Tire Track (Front), in:
- 67.2 in
- Tire Track (Rear), in:
- 68.2 in
- Rim:
- ET54
- Center of Gravity X, in:
- TBD
- Center of Gravity Z, in:
- TBD
- Max. Height Center of Gravity Z , in:
- TBD
- Center of Gravity Y, in:
- TBD
- Interior Height:
- 79 in
- Tires & Load Ratings:
- 3086
Powertrain
- Engine:
- 4-Cylinder Diesel Standard Output
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 170 hp at 3,800 rpm
- Rated Torque:
- 295 lbf-ft at 1,400-2,400 rpm
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Dimensions
- Overall Height:
- 107 in
- Overall Length:
- 290 in
- Overall Width with mirrors:
- 92 in
- Wheelbase:
- 170 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output
- Payload Capacity:
- 3,704 lbs
- Max Towing:
- 5,000 lbs [1]
- Cargo Volume:
- 533 cu ft
- Standing Height:
- 79 in
- Seating Capacity:
- 2-3
Capacity
- Payload Capacity:
- 3,704 lbs
- Seating Capacity:
- 2-3
- Cargo Volume:
- 533 cu ft
- Max Available GVWR:
- 9,050 lbs
- Base Curb Weight:
- 5,346 lbs
- Max Available GCWR:
- 13,930 lbs
- Max Towing:
- 5,000 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- Max. Tongue Weight, lbs.:
- 500 lbs
- GAWR.F (Standard), lbs.:
- 4,101 lbs
- GAWR.F (Option), lbs.:
- 4,409 lbs
- GAWR.R, lbs.:
- 5,359 lbs
- Base Curb Weight (Rear), lbs.:
- 3,037 lbs
- UVW, lbs.:
- 7,401 lbs
- Base Curb Weight (Front), lbs.:
- 2,384 lbs
Measurements
- Standing Height:
- 79 in
- Cargo Bed Length:
- 189 in
- Turning Diameter (curb to curb):
- 52 ft
- Ground To First Step-Side:
- 20. in
- Load height, unloaded (ground to cargo floor):
- 27 in
- Door Opening-Side(Height):
- 72 in
- Door Opening-Rear(Height):
- 73 in
- Dual Door Width-Side:
- 51 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 189 in
- Cargo Width at Wheelhouse:
- 53 in
- Max Width at Floor:
- 70 in
- Loading Area:
- 81 sq ft
- Turning Circle (Wall to Wall):
- 50 ft
- Available Rear Axle Ratios****:
- TBD
- Overhang (Front), in:
- 40 in
- Overhang (Rear), in:
- 80 in
- Tire Track (Front), in:
- 67.2 in
- Tire Track (Rear), in:
- 68.2 in
- Rim:
- ET54
- Center of Gravity X, in:
- TBD
- Center of Gravity Z, in:
- TBD
- Max. Height Center of Gravity Z , in:
- TBD
- Center of Gravity Y, in:
- TBD
- Tires & Load Ratings:
- 3086
- Interior Height:
- 79 in
Powertrain
- Engine:
- 4-Cylinder Diesel High Output
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp at 3,800 rpm
- Rated Torque:
- 332 lb-ft at 1,400-2,400 rpm
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Cargo Van 2500
Dimensions
- Overall Height:
- 111 in
- Overall Length:
- 290 in
- Overall Width with mirrors:
- 92 in
- Wheelbase:
- 170 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output AWD
- Payload Capacity:
- 3,351 lbs
- Cargo Volume:
- 533 cu ft
- Seating Capacity:
- 3
Capacity
- Payload Capacity:
- 3,351 lbs
- Seating Capacity:
- 3
- Cargo Volume:
- 533 cu ft
- Max Available GVWR:
- 9,050 lbs
- Base Curb Weight:
- 5,699 lbs
- Max Available GCWR:
- 13,930 lbs
- Max Towing:
- 5,000 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- Shipping Weight:
- GAWR.F (Standard):
- 4,409 lbs
- GAWR.F (Option):
- GAWR.R:
- 5,359 lbs
- Base Curb Weight (Front):
- 3,274 lbs
- Base Curb Weight (Rear):
- 2,480 lbs
- UVW:
- 7,401 lbs
- Max Tongue Weight:
- 500 lbs
Measurements
- Standing Height:
- 79 in
- Cargo Bed Length:
- 189 in
- Turning Diameter (curb to curb):
- 52 ft
- Ground To First Step-Side:
- 24 in
- Load height, unloaded (ground to cargo floor):
- 31 in
- Door Opening-Side(Height):
- 72 in
- Door Opening-Rear(Height):
- 73 in
- Dual Door Width-Side:
- 51 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 189 in
- Cargo Width at Wheelhouse:
- 53 in
- Max Width at Floor:
- 70 in
- Loading Area:
- 81 sq ft
- Turning Circle (Wall to Wall):
- 53 ft
- Available Rear Axle Ratios****:
- 56%/ 44%
- Overhang (Front), in:
- 40 in
- Overhang (Rear), in:
- 80 in
- Tire Track (Front), in:
- 67.8 in
- Tire Track (Rear), in:
- 68.2 in
- Rim:
- ET54
- Center of Gravity X, in:
- TBD
- Center of Gravity Z, in:
- TBD
- Max. Height Center of Gravity Z , in:
- TBD
- Center of Gravity Y, in:
- TBD
- Tires & Load Ratings:
- 3086
- Interior Height:
- 79 in
Powertrain
- Engine:
- 4-Cylinder Diesel High Output AWD
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp at 3,800 rpm
- Rated Torque:
- 332 lb-ft at 1,400-2,400 rpm
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Dimensions
- Overall Height:
- 108 in
- Overall Length:
- 290 in
- Overall Width with mirrors:
- 92 in
- Wheelbase:
- 170 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output
- Payload Capacity:
- 4,148 lbs
- Max Towing:
- 5,000 lbs [1]
- Cargo Volume:
- 469 cu ft
- Standing Height:
- 79 in
Capacity
- Payload Capacity:
- 4,148 lbs
- Seating Capacity:
- 2-3
- Cargo Volume:
- 469 cu ft
- Max Available GVWR:
- 9,990 lbs
- Base Curb Weight:
- 5,743 lbs
- Max Available GCWR:
- 15,250 lbs
- Max Towing:
- 5,000 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- Max. Tongue Weight, lbs.:
- 750 lbs
- GAWR.F (Standard), lbs.:
- 4,081 lbs
- GAWR.F (Option), lbs.:
- 4,409 lbs
- GAWR.R, lbs.:
- 7,059 lbs
- Base Curb Weight (Front), lbs.:
- 2,841 lbs
- UVW, lbs.:
- 7,401 lbs
- Base Curb Weight (Rear), lbs.:
- 3,078 lbs
Measurements
- Standing Height:
- 79 in
- Cargo Bed Length:
- 189 in
- Turning Diameter (curb to curb):
- 52 ft
- Ground To First Step-Side:
- 21 in
- Load height, unloaded (ground to cargo floor):
- 29 in
- Door Opening-Side(Height):
- 72 in
- Door Opening-Rear(Height):
- 73 in
- Dual Door Width-Side:
- 51 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 189 in
- Cargo Width at Wheelhouse:
- 39 in
- Max Width at Floor:
- 70 in
- Loading Area:
- 78 sq ft
- Turning Circle (Wall to Wall):
- 55 ft
- Available Rear Axle Ratios****:
- 51%/ 49%
- Overhang (Front), in:
- 40 in
- Overhang (Rear), in:
- 80 in
- Tire Track (Front), in:
- 67.2 in
- Tire Track (Rear), in:
- 65.2 in
- Rim:
- HMA 125,5
- Center of Gravity X, in:
- TBD
- Center of Gravity Z, in:
- TBD
- Center of Gravity Y, in:
- TBD
- Max. Height Center of Gravity Z , in:
- TBD
- Tires & Load Ratings:
- 2,679
- Interior Height:
- 79 in
Powertrain
- Engine:
- 4-Cylinder Diesel High Output
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp at 3,800 rpm
- Rated Torque:
- 332 lb-ft at 1,400-2,400 rpm
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Cargo Van 3500XD
Dimensions
- Overall Height:
- 108 in
- Overall Length:
- 290 in
- Overall Width with mirrors:
- 96 in
- Wheelbase:
- 170 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output
- Payload Capacity:
- 5,188 lbs
- Max Towing:
- 5,000 lbs [1]
- Cargo Volume:
- 469 cu ft
- Standing Height:
- 79 in
- Seating Capacity:
- 2-3
Capacity
- Payload Capacity:
- 5,188 lbs
- Seating Capacity:
- 2-3
- Cargo Volume:
- 469 cu ft
- Max Available GVWR:
- 11,030 lbs
- Base Curb Weight:
- 5,842 lbs
- Max Available GCWR:
- 15,250 lbs
- Max Towing:
- 5,000 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- Base Curb Weight (Rear), lbs.:
- 3,078 lbs
- Max. Tongue Weight, lbs.:
- 750 lbs
- GAWR.F (Standard), lbs.:
- 4081 lbs
- GAWR.F (Option), lbs.:
- 4409 Ibs
- GAWR.R, lbs.:
- 7,721 lbs
- Base Curb Weight (Front), lbs.:
- 2,841 lbs
- UVW, lbs.:
- 10,470 lbs
Measurements
- Standing Height:
- 79 in
- Cargo Bed Length:
- 189 in
- Turning Diameter (curb to curb):
- 53 ft
- Ground To First Step-Side:
- 21 in
- Load height, unloaded (ground to cargo floor):
- 29 in
- Door Opening-Side(Height):
- 72 in
- Door Opening-Rear(Height):
- 73 in
- Dual Door Width-Side:
- 51 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 189 in
- Cargo Width at Wheelhouse:
- 39 in
- Max Width at Floor:
- 70 in
- Loading Area:
- 80.1` sq ft
- Turning Circle (Wall to Wall):
- 629.9 m
- Available Rear Axle Ratios****:
- 51% / 49%
- Overhang (Front), in:
- 40.2 in
- Overhang (Rear), in:
- 79.6 in
- Tire Track (Front), in:
- 67.2 in
- Tire Track (Rear), in:
- 65.2 in
- Rim:
- ET54
- Center of Gravity X, in:
- TBD
- Center of Gravity Z, in:
- TBD
- Max. Height Center of Gravity Z , in:
- TBD
- Center of Gravity Y, in:
- TBD
- Tires & Load Ratings:
- 3197
- Interior Height:
- 79.1 in
Powertrain
- Engine:
- 4-Cylinder Diesel High Output
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp at 3,800 rpm
- Rated Torque:
- 332 lb-ft at 1,400-2,400 rpm
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Cargo Van 3500XD
Dimensions
- Overall Height:
- 108 in
- Overall Length:
- 290 in
- Overall Width with mirrors:
- 96 in
- Wheelbase:
- 170 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output AWD
- Payload Capacity:
- 4,879 lbs
- Max Towing:
- 5,000 lbs [1]
- Cargo Volume:
- 469 cu ft
- Standing Height:
- 79.1 in
- Seating Capacity:
- 3
Capacity
- Payload Capacity:
- 4,879 lbs
- Seating Capacity:
- 3
- Cargo Volume:
- 469 cu ft
- Max Available GVWR:
- 11,030 lbs
- Base Curb Weight:
- 6,151 lbs
- Max Available GCWR:
- 15,250 lbs
- Max Towing:
- 5,000 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- GAWR.F (Option), lbs.:
- 4,409 lbs
- Base Curb Weight (Rear), lbs.:
- 3,078 lbs
- GAWR.F (Standard), lbs.:
- 4,081 lbs
- Max. Tongue Weight, lbs.:
- 500 lbs
- UVW, lbs.:
- 10,470 lbs
- Base Curb Weight (Front), lbs.:
- 2,841 lbs
- GAWR.R, lbs.:
- 7,721 lbs
Measurements
- Standing Height:
- 79.1 in
- Cargo Bed Length:
- 189 in
- Turning Diameter (curb to curb):
- 52 ft
- Ground To First Step-Side:
- 24.3 in
- Load height, unloaded (ground to cargo floor):
- 31 in
- Door Opening-Side(Height):
- 72 in
- Door Opening-Rear(Height):
- 73 in
- Dual Door Width-Side:
- 51 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 189 in
- Cargo Width at Wheelhouse:
- 39 in
- Max Width at Floor:
- 70 in
- Loading Area:
- 78 sq ft
- Turning Circle (Wall to Wall):
- 55 ft
- Available Rear Axle Ratios****:
- 52% / 48%
- Overhang (Front), in:
- 40 in
- Overhang (Rear), in:
- 80 in
- Tire Track (Front), in:
- 66.8 in
- Tire Track (Rear), in:
- 60.7 in
- Rim:
- HMA 125,5
- Center of Gravity X, in:
- TBD
- Center of Gravity Y, in:
- TBD
- Max. Height Center of Gravity Z , in:
- TBD
- Center of Gravity Z, in:
- TBD
- Tires & Load Ratings:
- 2,679
Powertrain
- Engine:
- 4-Cylinder Diesel High Output AWD
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp at 3,800 rpm
- Rated Torque:
- 332 lb-ft at 1,400-2,400 rpm
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Dimensions
- Overall Height:
- 108 in
- Overall Length:
- 290 in
- Overall Width with mirrors:
- 96 in
- Wheelbase:
- 170 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output
- Payload Capacity:
- 6,250 lbs
- Max Towing:
- 7,500 lbs [1]
- Cargo Volume:
- 469 cu ft
- Standing Height:
- 79 in
Capacity
- Payload Capacity:
- 6,250 lbs
- Seating Capacity:
- 2-3
- Cargo Volume:
- 469 cu ft
- Max Available GVWR:
- 12,125 lbs
- Base Curb Weight:
- 5,875 lbs
- Max Available GCWR:
- 15,250 lbs
- Max Towing:
- 7,500 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- Base Curb Weight (Front), lbs.:
- 2,857 lbs
- UVW, lbs.:
- 11,373 lbs
- Base Curb Weight (Rear), lbs.:
- 3,095 lbs
- Max. Tongue Weight, lbs.:
- 750 lbs
- GAWR.F (Standard), lbs.:
- 4,630 lbs
- GAWR.F (Option), lbs.:
- GAWR.R, lbs.:
- 7,934lbs
Measurements
- Standing Height:
- 79 in
- Cargo Bed Length:
- 189 in
- Turning Diameter (curb to curb):
- 53 ft
- Ground To First Step-Side:
- 21 in
- Load height, unloaded (ground to cargo floor):
- 28 in
- Door Opening-Side(Height):
- 72 in
- Door Opening-Rear(Height):
- 73 in
- Dual Door Width-Side:
- 51 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 189in
- Cargo Width at Wheelhouse:
- 39 in
- Max Width at Floor:
- 70 in
- Loading Area:
- 78 sq ft
- Turning Circle (Wall to Wall):
- 55 ft
- Available Rear Axle Ratios****:
- 51% / 49%
- Overhang (Front), in:
- 40 in
- Overhang (Rear), in:
- 80 in
- Tire Track (Front), in:
- 66 in
- Tire Track (Rear), in:
- 60.7 in
- Rim:
- HMA 125,5
- Center of Gravity X, in:
- TBD
- Center of Gravity Z, in:
- TBD
- Max. Height Center of Gravity Z , in:
- TBD
- Center of Gravity Y, in:
- TBD
- Tires & Load Ratings:
- 2679
- Interior Height:
- 79 in
Powertrain
- Engine:
- 4-Cylinder Diesel High Output
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp at 3,800 rpm
- Rated Torque:
- 332 lb-ft at 1,400-2,400 rpm
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Key Features
More Than a Van
1/1
Upfit Your Van with Mercedes-Benz ExpertSOLUTIONS
No van upfits like a Mercedes-Benz Sprinter van. Whether for business or pleasure, Mercedes-Benz vans offer superior capabilities designed to fit your needs, no matter what they may be.
1/1
Connected Technology for Your Sprinter
With technology like Active Brake Assist, rear-view camera display, multimedia touch-screen control and more, you’ll be taking to the road with ease. And when you connect drivers, vehicles, and managers with Mercedes me connect, you can push your business even further.[3][4]
