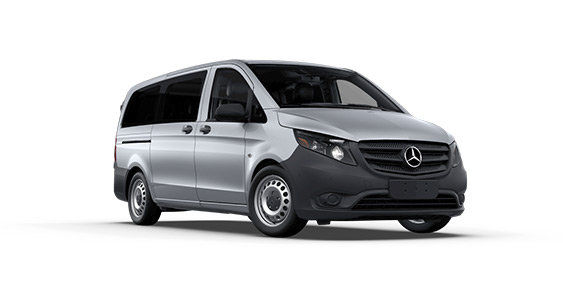

Metris Passenger Van
Contact dealer for pricing
Colour
Arctic WhiteKey Features
Passenger Van Lineup
2023
Dimensions
- Length:
- 514 cm
- Width (incl. mirrors):
- 224.4 cm
- Height:
- 189 cm
- Wheelbase:
- 126 in (320 cm)
Key Features
- Engine:
- 4-Cylinder Gas
- Max Payload:
- 975 kg
- Towing Capacity:
- 2,268 kg
- Seating Capacity:
- 8
Capacity
- Seating Capacity:
- 8
- Cargo Volume:
- 1.06 cu. m
- Fuel Tank:
- 70 L
- Max Roof Load:
- 150 kg
- GAWF / GAWR:
- 1,550 kg
- Towing Capacity:
- 2,268 kg
- Base Curb Weight:
- 2,005 kg
- Max Payload:
- 975 kg
- GCWR:
- 5,300 kg
- GVWR:
- 3,100 kg
Measurements
- Width (w/o mirrors):
- 192.8 cm
- Height with roof rails:
- 193.8 cm
- Overhang front/rear:
- 89.5 cm / 104.5 cm
- Cargo Length (without partition):
- 69.9 cm
- Max Cargo Width:
- 155.2 cm
- Cargo Floor Width (btw. wheelhouse):
- 120.5 cm
- Min. Cargo Height:
- 132.6 cm
- Max Cargo Height:
- 136.7 cm
- Cargo Volume:
- 1.06 cu. m
- Load Height:
- 54.86 cm
- Ground Clearance:
- 9.7 cm
- Side Door Opening Height:
- 122 cm
- Side Door Opening Width (at floor):
- 90.1 cm
- Rear Cargo Door Opening Height:
- 119.5 cm
- Rear Cargo Door Opening Width:
- 133.7 cm
- Turning Diameter (Wall to Wall):
- 11.8 m
- Turning Diameter (Curb to Curb):
- 11.1 m
- Headroom (1st row):
- 100.5 cm
- Leg room (1st row):
- 90.9 cm

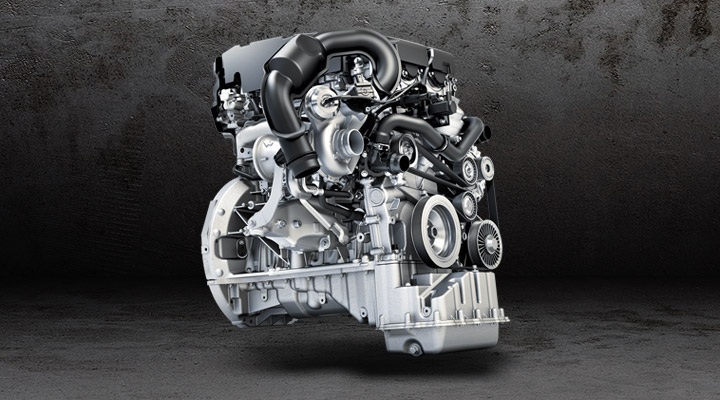

Powertrain
- Engine:
- 4-Cylinder Gas
- Horsepower:
- 208 hp @ 5,500 rpm
- Torque:
- 349 N·m @ 1,250-4,000 rpm
- Rear Axle Ratio:
- 3.467
- 1st Gear:
- 5.354
- 2nd Gear:
- 3.243
- 3rd Gear:
- 2.252
- 4th Gear:
- 1.636
- 5th Gear:
- 1.211
- 6th Gear:
- 1.000
- 7th Gear:
- 0.865
- Reverse:
- -4.798

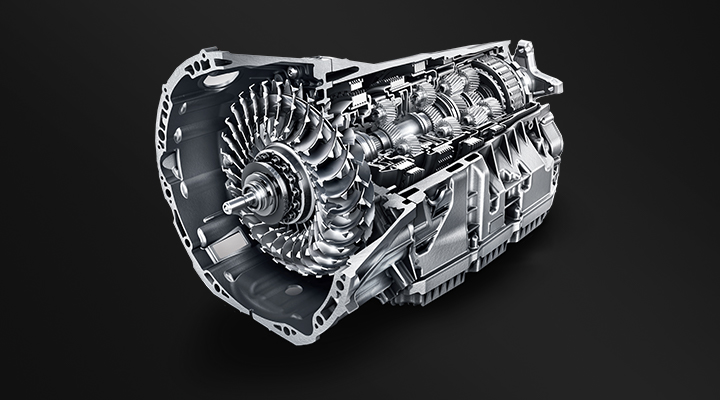

- Transmission:
- 9G-TRONIC
eXpertUpfitter
Upfit-Friendly Vans
Nothing gives you more flexibility and options than one of our upfit-friendly vans. And when combined with the expert craftsmanship of a Mercedes‑Benz eXpertUpfitter, there simply isn’t a more flexible work van on the road.
